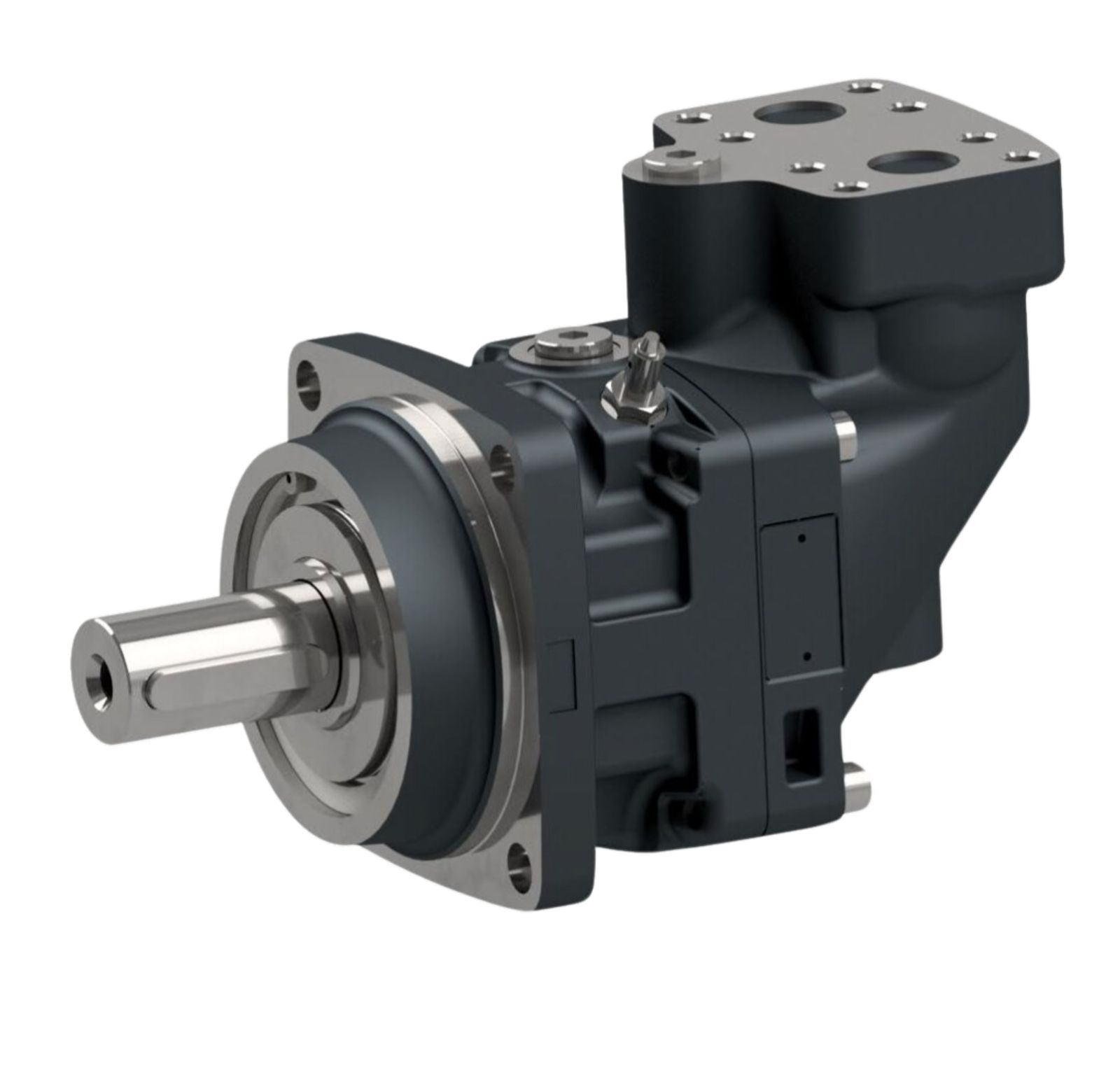

F12 Parker Motor

Hydraulic Motor

F12 is a bent-axis, fixed displacement motor/pump. It can be used in numerous applications in both open and closed loop circuits.

Learn more

Max intermittent pressure up to 500 bar (7251 psi) and continuous operating pressure up to 450 bar (6526 psi)
The 7 or 9 piston design provides high start-up torque and smooth motor operation
ISO, Cartridge, SAW and SAE versions
The laminated piston ring offers important advantages such as unbeatable efficiency and thermal shock resistance
High allowable speeds and operating pressures means high output power
The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very robust design with long service life and, above all, proven reliability.
The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight motor/pump.
Small envelop size and a high power-to-weight ratio
The motor version has highly engineered valve plates for high speed and low noise
The pump version has highly engineered valve plates for increased self priming speed and low noise, available with left and right hand rotation.
Our unique timing gear design synchronizes shaft and cylinder barrel, making the F12 very tolerant to high ‘G’ forces and torsional vibrations.
Heavy duty roller bearings permit substantial external axial and radial shaft loads.
