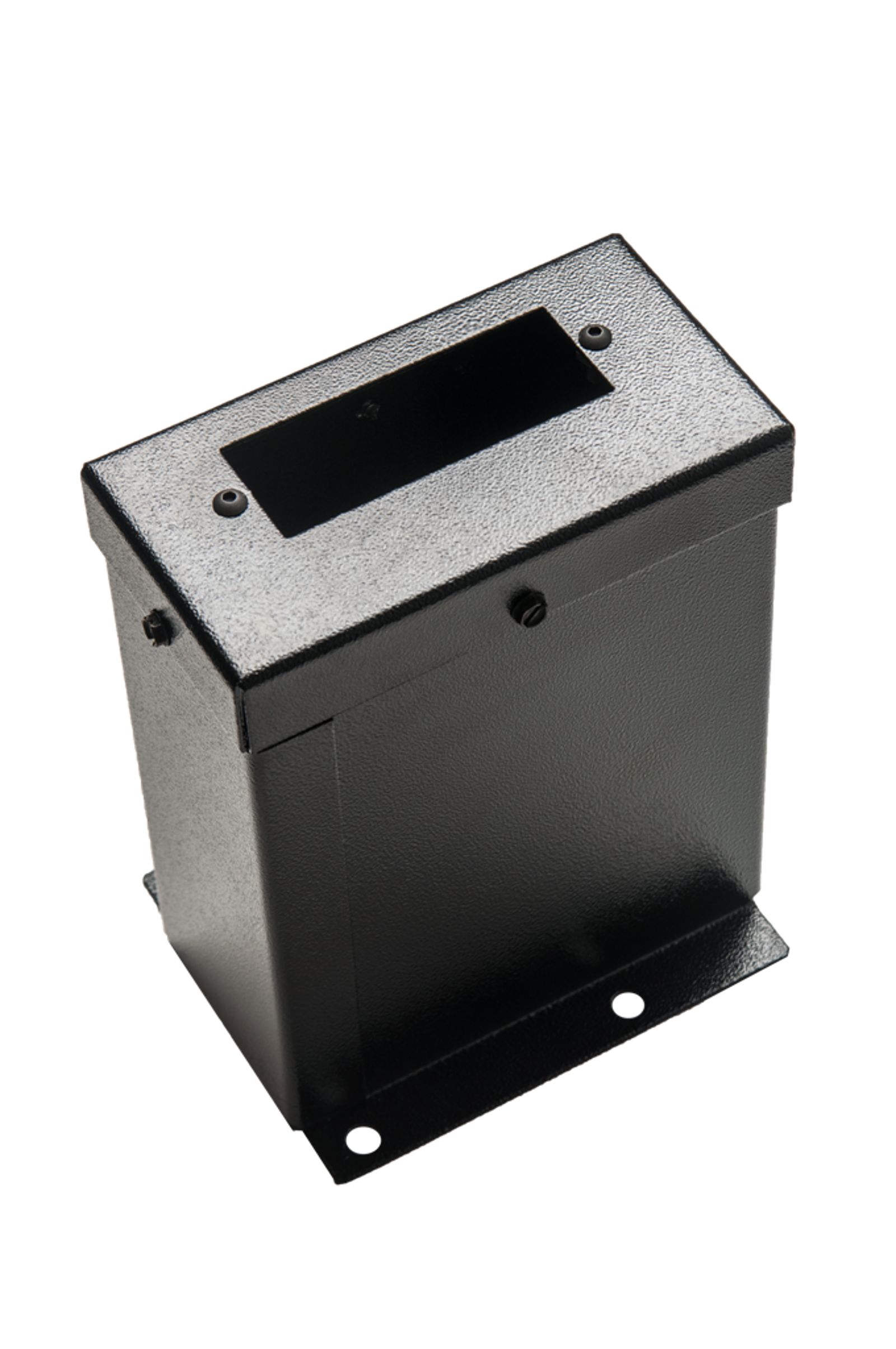

Cut outs for a rocker switch and indicator light are available in the 2 and 3 bank consoles. Plugs and blanks are available to cover openings not used.
PART# | CONSOLE ACCOMMODATES | HEIGHT | WIDTH | LENGTH |
|---|---|---|---|---|
CONB-1-S | (1) x VM-7 | 13.00" | 4.56" | 5.25" |
CONB-1-S8 | (1) x VM-7 | 8.00" | 4.56" | 5.25" |
CONB-1-R | (1) x VM-7, (1) VR-9-S (rocker) | 13.00" | 5.25" | 5.25" |
CONB-2 | (2) x VM-7 | 13.00" | 5.25" | 5.25" |
CONB-2-R | (2) x VM-7, (1) VR-9-S (rocker) | 14.00" | 7.25" | 6.75" |
CONB-3-R | (3) x VM-7, (1) VR-9-S (rocker) | 14.00" | 7.25" | 6.75" |
CONB-4 | (4) x VM-7 | 14.00" | 8.00" | 7.00" |
VM-10-3L | VM-10 with adapter Plate (up/down/left/right) - converts 3-bank VM-7 opening to (1) VM-10 opening | |||
4648 | VM-7 panel opening cut-out plug (requires 2x Hardware 4299 + 4313 to mount) |
PART # | DESCRIPTION | TUBES (15 ft) | ELBOW FITTINGS (PART# 3760) | STRAIGHT FITTINGS (PART# 4361) |
|---|---|---|---|---|
TF-79 | TUBING KIT 1-BANK VM SERIES | 4 | 2 | 2 |
TF-80 | TUBING KIT 2-BANK VM SERIES | 6 | 2 | 4 |
TF-81 | TUBING KIT 3-BANK VM SERIES | 8 | 2 | 6 |
TF-82 | TUBING KIT 4-BANK VM SERIES | 10 | 2 | 8 |
PART # |
DESCRIPTION |
WHERE USED |
SUPPORT |
|---|---|---|---|
RK-1 |
Filter, Regulator & Lubricator Kit with tube/fittings and Pressure Protection Valve |
master kit | |
RK-4446 |
Filter, Regulator & Lubricator and mounting bracket |
master kit | |
RK-1600 |
Regulator Kit with aluminum panel mounting nut |
master kit | |
1600 |
Regulator less mounting nut (1/8 NPT) |
RK-1600 | |
4428 |
Aluminum nut for panel mounting regulator p/n 1600 |
RK-1600 | |
4446 |
Filter, Regulator & Lubricator (FRL - 1/8 NPT) |
RK-1 / RK-4446 | |
1599 |
Mounting Bracket for FRL (p/n 4446) or Regulator (p/n 1600) |
RK-1 / RK-4446 | |
PP-470 |
Pressure Protection Valve (65 psi shut-off) |
RK-1 |
PART # | DESCRIPTION |
|---|---|
BVM-10-D | Bracket Kit with VM10 Detent |
BVM-7 | Bracket Kit |
BVM7-2 | Bracket Kit 2-Bank VM7 |
BVM7-3 | Bracket Kit 3-Bank VM7 |
BVM7-4 | Bracket Kit 4-Bank VM7 |
BVM7-5 | Bracket Kit 5-Bank VM7 |
BVM7-6 | Bracket Kit 6-Bank VM7 |
BVM7-7 | Bracket Kit 7-Bank VM7 |
BVM7-8 | Bracket Kit 8-Bank VM7 |
BVM7-C | Bracket Kit Detent Clip |
