KIT # | METERING or NON-METERING | WINCH APPLICATION OLD / NEW MODEL | CYLINDER CLUTCH / BRAKE | VALVES CLUTCH / BRAKE | INSTALLATION |
|---|---|---|---|---|---|
WT-23 | Non-Metering | 23/RN20WM | C-4178/C-5042 | V-85 | |
WT-23-M | Metering | 23/RN20WM | C-4178/C-5042 | V-8-S, VM-2-X | |
WT-34 | Non-Metering | 34/RN30WM | C-5300/C-5043 | V-85 | |
WT-34-M | Metering | 34/RN30WM | C-5300/C-5043 | V-8-S, VM-2-X | |
WT-64 | Non-Metering | 64/RN45WM | C-5280/C-5039 | V-85 | |
WT-64-M | Metering | 64/RN45WM | C-5280/C-5039 | V-8-S, VM-2-X | |
WT-70 | Non-Metering | 70/RN65WM | C-5280/C-5039 | V-85 | |
WT-70-M | Metering | 70/RN65WM | C-5280/C-5039 | V-8-S, VM-2-X | |
WT-80 | Non-Metering | 80/RN100WM | C-5281/C-5041 | V-85 | |
WT-80-M | Metering | 80/RN100WM | C-5281/C-5041 | V-8-S, VM-2-X |

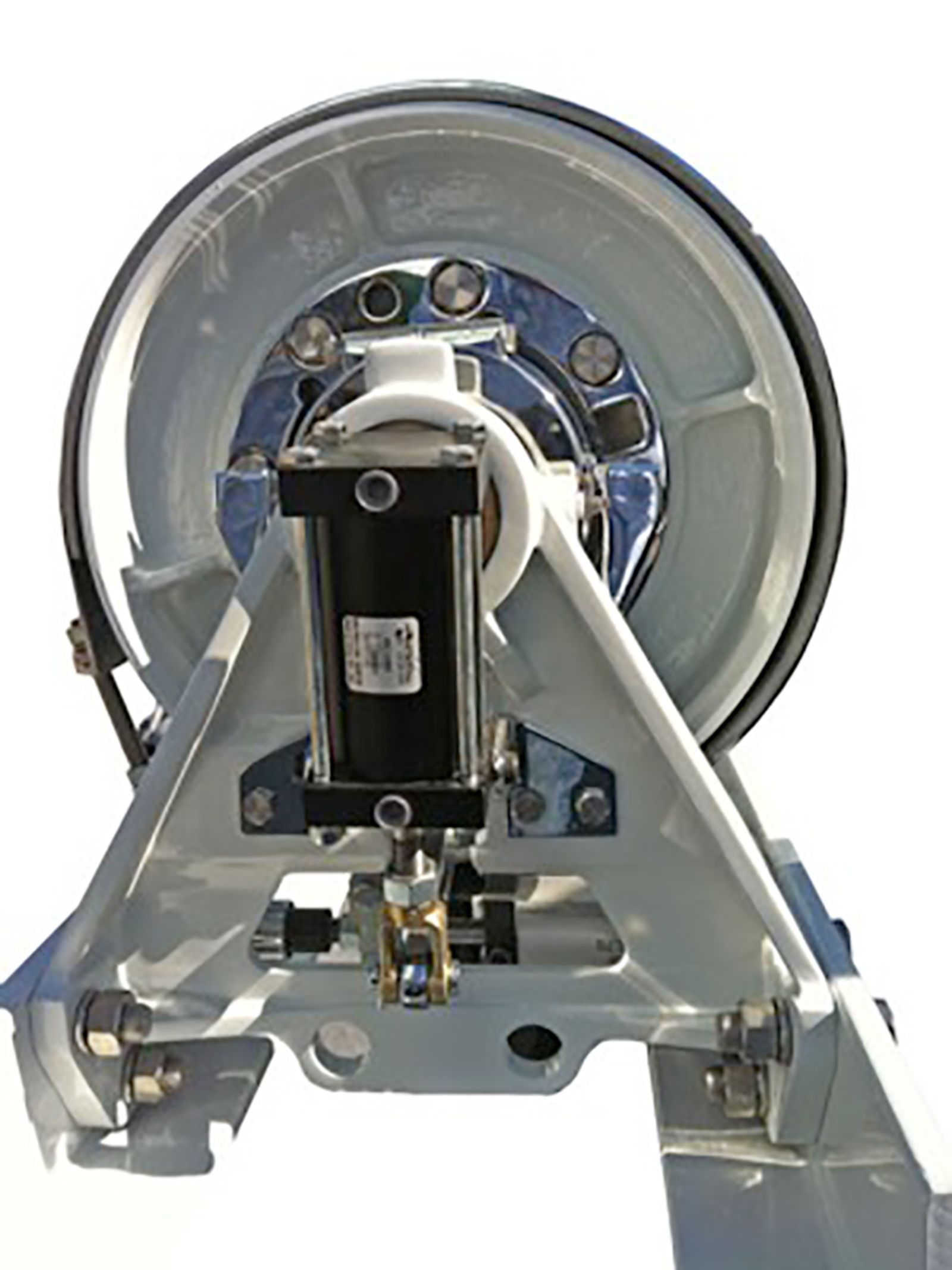

APSCO pioneered the use of air controls for winches in the 1960’s. Our understanding of the application and the harsh operating environments position us as the first and only choice among leading winch manufacturers. All of our winch kits are tailored to specific winch designs and include clutch cylinders, brake cylinders, controls, tubing, fitting, and all the required hardware for mounting.
KIT# | METERING or NON-METERING | WINCH APPLICATION | CYLINDER CLUTCH/BRAKE | VALVES CLUTCH/BRAKE | INSTALLATION |
|---|---|---|---|---|---|
WBR-3 | Non-Metering | AHSU3 | C-5036/ N/A | V-5-S | |
WBR-5 | Non-Metering | AMGU5 | C-5036/ N/A | V-5-S | |
WBR-7 | Non-Metering | AMS7-15B | C-4075/C-4075 | V-55 | |
WBR-716 | Non-Metering | AMU7-16F | C-2001/ N/A | V-8-S | |
WBR-10 | Non-Metering | AMS10-18B | C-4007/C-5500 | V-55 | |
WBR-U-12 | Non-Metering | AMSU12-12F | C-4091/ N/A | V-8-S | |
WBR-U-12 | Non-Metering | AHSU12-12F | C-4091/ N/A | V-8-S | |
WBR-U-12 | Non-Metering | AMSU10-12F | C-4091/ N/A | V-8-S | |
WBR-U-12 | Non-Metering | AHSU10-12F | C-4091/ N/A | V-8-S | |
WBR-12 | Non-Metering | MS-12 | C-4007/C-5500 | V-55 | |
WBR-18 | Non-Metering | PD-18 | C-4790/ N/A | V-8-S | |
WBR-18-B | Non-Metering | PD-18-B | C-5036/ N/A | V-8-S | |
WBR-20 | Non-Metering | AMS20 | C-4074/C-5460 | V-55 | |
WBR-20-M | Metering | AMS20 | C-4074/C-5460 | V-5, VM-2-X | |
WBR-30 | Non-Metering | MS30 | C-4074/C-5470 | V-55 | |
WBR-30-M | Metering | MS30 | C-4074/C-5470 | V-5-S, VM-2-X | |
WBR-50 | Non-Metering | MS50 | C-5190/C-5250 | V-55 | |
WBR-50-M | Metering | MS50 | C-5190/C-5250 | V-5-S, VM-2-X | |
WBM-150 | Non-Metering | M150A | C-5002/C-6001 | V-55 | |
WBR-CL | Non-Metering | CL-3L-1 | C-4123/C-2507-F | V-8-S, V-88 |
KIT # | METERING or NON-METERING | WINCH APPLICATION | CYLINDER CLUTCH/BRAKE | VALVES CLUTCH/BRAKE | INSTALLATION |
|---|---|---|---|---|---|
W-1 | Non-Metering | Winch Clutch | C-4060/ N/A | V-8-S | |
W-2 | Non-Metering | Winch Clutch (HD) | C-5060/ N/A | V-8-S | |
W-4 | Non-Metering | Winch drum brake | N/A /C-4050 | V-5-S | |
W-7 | Non-Metering | Winch drum brake (HD) | N/A /C-5050 | V-5-S | |
W-12-M | Metering | Clutch and Brake | C-5050/C-4060 | V-8-S, VM-2-X | |
W-14 | Non-Metering | Clutch and Brake | C-4050/C-4060 | V-85 | |
W-14-M | Metering | Clutch and Brake | C-4050/C-4060 | V-8-S, VM-2-X | |
W-27 | Non-Metering | Clutch and Brake (HD) | C-5050/C-5060 | V-85 | |
W-27-M | Metering | Clutch and Brake (HD) | C-5050/C-5060 | V-8-S, VM-2-X |
