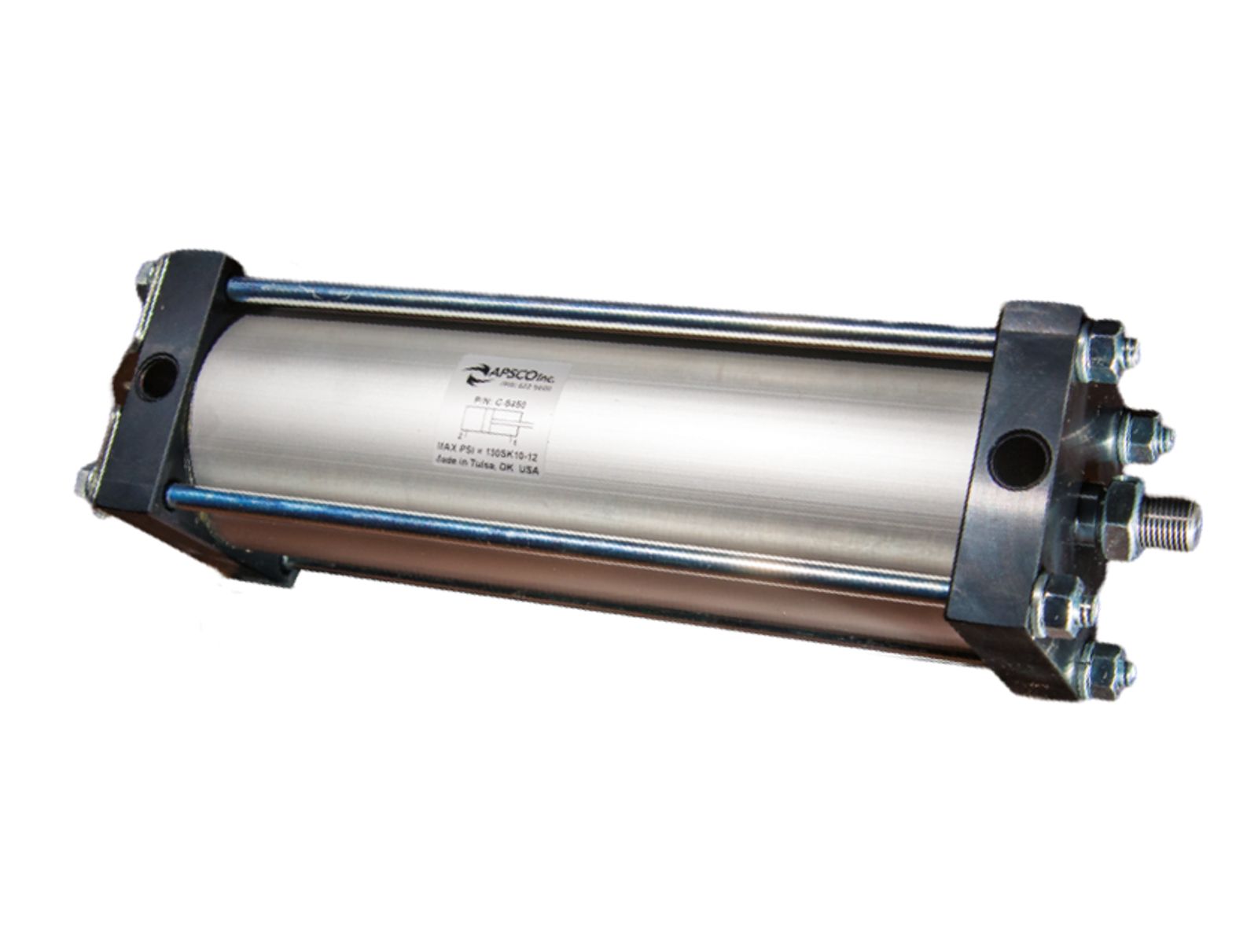

Tailgate Latch

Tailgate Series

From the beginning, APSCO products have been designed and manufactured for the heavy truck and mobile equipment industries. Our tailgate latch cylinders are no exception. In today’s tailgate locking applications, a stable, reliable, and fast latch is mandatory. More drivers, manufacturers, and distributors are counting on APSCO tailgate latch kits to ensure a quick and strong latching or unlatching of the tailgate. Operators have peace of mind that their cylinders will remain durable over time and in harsh environments.

With a variety of strokes and bores to fit nearly any body or trailer, APSCO tailgate latch cylinders have become the leader in the industry for OEMs, aftermarket and replacement parts.

APSCO valve and fitting kits are available for all cylinders, making installation efficient and easy.

Learn more
  • FEATURES
  • RESOURCES
  • Proven design – maintenance and service-free
  • High tensile steel rods – plated for corrosion resistance
  • Manufactured in the USA – highest quality assured
    Options
    Piston rod available in stainless steel
  • Any cylinder can be ordered complete with clevis and pins
  • Spring return cylinders are also available
  • Various stroke lengths available upon request
  • Low-temperature seals

WATCH VIDEO

Cylinder Sizing Worksheet

(Swipe left to see more of table)

TAILGATE LATCH CYLINDER PART NUMBER LIST

CYLINDER PART #
▲ ▼
DESCRIPTION
▲ ▼
BORE
▲ ▼
STROKE
▲ ▼
PORT
▲ ▼
P-ROD THREAD
▲ ▼
FORCE @ 100 PSI
▲ ▼
SEAL KIT #
▲ ▼
DRAWINGS
▲ ▼
C-5103-SR CYL 2.5 X 3 SR 10 BR 2.50 3.00 1/4 NPT 5/8-18 487 SK-2609 Drawing
C-5180S CYL. 2.5 X 4 DA 10 BR 2.50 4.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5078-PK CYL 2.50 X 4.00 SE 8 BR with Clevis 2.50 4.00 1/4 NPT 1/2 - 20 378 SK-2609 Drawing
C-5026-PK CYL. 2.5 X 6 DA 10 BR 2.50 6.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5026S-PK CYL. 2.5 X 6 DA 10 BR 2.50 6.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5091 CYL. 2.5 X 6 SE 2.50 6.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5097-SE-PK CYL. 2.5 X 6 SE 10 BR PK 2.50 6.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5063 CYL 2.5 X 6 SR 10 BR 2.5 6.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5075-PK CYL. 2.5 X 7.5 DA 10 BR 2.50 7.50 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5070 CYL. 2.5 X 8 DA 10 BR 2.50 8.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5070-PK CYL. 2.5 X 8 DA 10 BR 2.50 8.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5070S CYL. 2.5 X 8 DA 10 BR 2.50 8.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5072 CYL. 2.5 X 8 DA 10 BR 2.50 8.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5094 CYL. 2.5 X 8 DA 10 BR 2.50 8.00 1/4 NPT 5/8-18 490 SK-2609 Drawing
C-5450 CYL. 2.5 X 8 DA 8 BR 2.50 8.00 1/4 NPT 1/2-20 490 SK-3107 Drawing
C-5080 CYL. 2.5 X 10 DA 8 BR 2.50" 10.00" 1/4 NPT 5/8"-18 490 SK-2609 Drawing
C-5081-PK CYL. 2.5 X10 DA 10 BR 2.50" 10.00" 1/4 NPT 5/8"-18 490 SK-2609 Drawing
C-5331-PK CYL. 2.5 X 14 DA 8 BR 2.50" 14.00" 1/4 NPT 5/8"-18 490 SK-2609 Drawing
C-6101-SR-PK CYL 3.5 X 3.0 SR 12 PK 3.5 3.00 1/4 NPT 5/8"-18 974 SK-1779 Drawing
C-6203-SR CYL 3.5 X 3.0 SR 10 BR 3.5 3.00 1/4 NPT 5/8-18 986 SK-5482 Drawing
C-6103-PK CYL 3.5 X 4 DA 16 BR PK 3.5 4.00 1/4 NPT 1-14 962 SK-3037 Drawing
C-6097-PK CYL. 3.5 X 5.75 DA 16NS BR PK 3.50 5.75 1/4 NPT 1-14 962 SK-3037 Drawing
C-6053S-PK CYL. 3.5 X 6.00 DA 10 BR 3.50 6.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6057-PK CYL. 3.5 X 6 DA 10 BR 3.50 6.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6063 CYL. 3.5 X 6 DA 12NC BE 3.50 6.00 1/4 NPT 3/4-10 962 SK-1779 Drawing
C-6084-PK CYL. 3.5 X 6 DA 10 BR 3.50 6.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6086-PK CYL. 3.5 X 6 DA 16NS BR 3.50 6.00 1/4 NPT 1-14 962 SK-3037 Drawing
C-6102-P CYL 3.5 X 6 DA 12 BR P 3.5 6.00 1/4 NPT 3/4-16 962 SK-3037 Drawing
C-6004 CYL. 3.5 X 8 DA 12NC BE 3.50 8.00 1/4 NPT 3/4-10 962 SK-3037 Drawing
C-6009-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6011-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6023-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6023S-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6059-F-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6059-E-PK CYL. 3.5 X 8.00 DA 10 BR W/ ELECTRIC SOLENOID 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6080 CYL. 3.5 X 8 DA 12 NC BE 3.50 8.00 1/4 NPT 3/4-10 962 SK-1779 Drawing
C-6068-PK CYL 3.5 X 8 DA 8 BR PK 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6081-PK CYL. 3.5 X 8 DA 16NS BR 3.50 8.00 1/4 NPT 1-14 962 SK-3037 Drawing
C-6089-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6090-PK CYL. 3.5 X 8.00 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6093-PK CYL. 3.5 X 8 DA 10 BR 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6096-E-WP-PK CYL. 3.5 X 8 DA 16NS BR PK 3.50 8.00 1/4 NPT 1-14 962 SK-3037 Drawing
C-6096-PK CYL. 3.5 X 8 DA 16NS BR PK 3.50 8.00 1/4 NPT 1-14 962 SK-3037 Drawing
C-6318-PK CYL. 3.5 X 8 DA 10 BR PK 3.50 8.00 1/4 NPT 5/8-18 962 SK-1779 Drawing
C-6010 CYL. 3.5 X 10.00 DA 10 BR 3.50" 10.00" 1/4 NPT 5/8"-18 962 SK-1779 Drawing
C-0410-SR CYL. 4 X 4.6 SR TR 4.00 4.60 1/4 NPT 3/4-16 285 Drawing
C-0411-SR CYL. 4 X 4.6 SR TR 4.00 4.60 3/8 NPT 3/4-16 661 Drawing
C-0406-PK CYL 4 X 6 DA 16 BR PK 4.00" 6.00" 1/2 NPT 1-14 1257 SK-5361 Drawing

Tailgate Latch Parts Key
▲ ▼
1 = 1.0" Pins
BE = Block End
BR = Bracket End Mount
DA = Double Acting
E = Electric Solenoid
F = Fittings
HM = Hinge Mount
PK = Pin Kit
S = Stainless Piston Rod
SE = Spring Extend
SR = Spring Return
TR = Trunnion Mount
