- Modular Expansion base designs available
- 2-Bank or 3-Bank Single Axis Feathering Control Valves (VM-Series) options
- Option to engage the PTO with air or electric rocker controls
Warning Light/Buzzer - PTO Engaged Warning Light
- Blank Openings for additional electric rocker switches or air valves

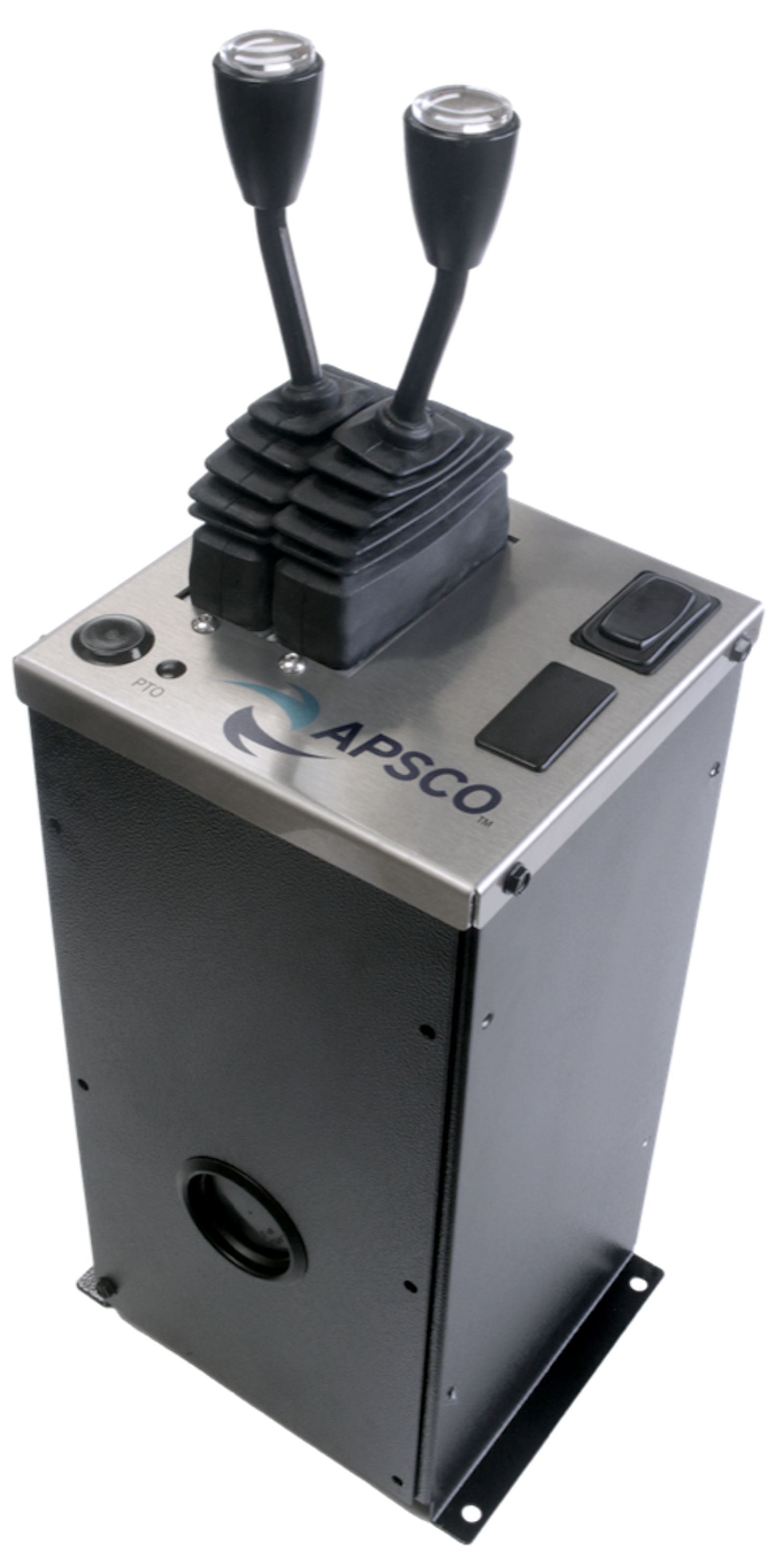

APSCO generic consoles are intended for Refuse or Roll Off truck applications. They come in several configurations with options to control the Hoist, Tilt, Winch, Tail and other functions. Standard features include a Stainless Steel lid, openings for 2 or 3 bank VM-Series feathering control valves, control valve labels, and powder coated steel base with access panel. Additional features include openings for warning lights/buzzer, PTO light and plugged openings to control the truck PTO or other functions.
Watch Video Modular Consoles
PART # | DESCRIPTION | VALVE BANK | PTO VR-9-S | PTO Light EL-799-12 | VRN SWITCH | 7828 LIGHT BUZZER | BASE DIM. | 8928 LABELS | IMAGE |
|---|---|---|---|---|---|---|---|---|---|
CONV-UNI-25** | CONSOLE w/nVM7-2B2020 | YES | YES* | YES* | YES* | YES* | 6.7"x6.7"x14" | YES | |
CONV-UNI-26** | CONSOLE w/n2-bank Opening | 2-bank nopening | YES* | YES* | YES* | YES* | 6.7"x6.7"x14" | YES | |
CONV-UNI-27** | CONSOLE w/nVM7-3B35S35 | YES | YES* | YES* | YES* | YES* | 6.7"x7.3"x14" | YES | |
CONV-UNI-28** | CONSOLE w/n3-bank Opening | 3-bank nopening | YES* | YES* | YES* | YES* | 6.7"x7.3"x14" | YES | |
8928 | LABELS | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
