Push-Pull 4-Way

V-38

2-position, triple spool, 4-way

2 thru holes horizontal

Push/Pull

1/8"

1.50"

3.50"

2.00"

130

D.A.


V-8

2-position, single spool, 4-way

2 threaded 10-32 UNF vertical and 2 thru holes horizontal

Push/Pull

1/8"

2.00"

2.00"

1.00"

130

D.A.

Drawing


V-85

2-position, dual spool, 3-way & 4-way

2 thru holes horizontal

Push/Pull

1/8"

2.00"

2.00"

1.00"

130

S.A. & D.A.

V-88

2-position, dual spool, 4-way

2 threaded 10-32 UNF vertical and 2 thru holes horizontal

Push/Pull

1/8"

3.50"

2.00"

1.00"

130

D.A.

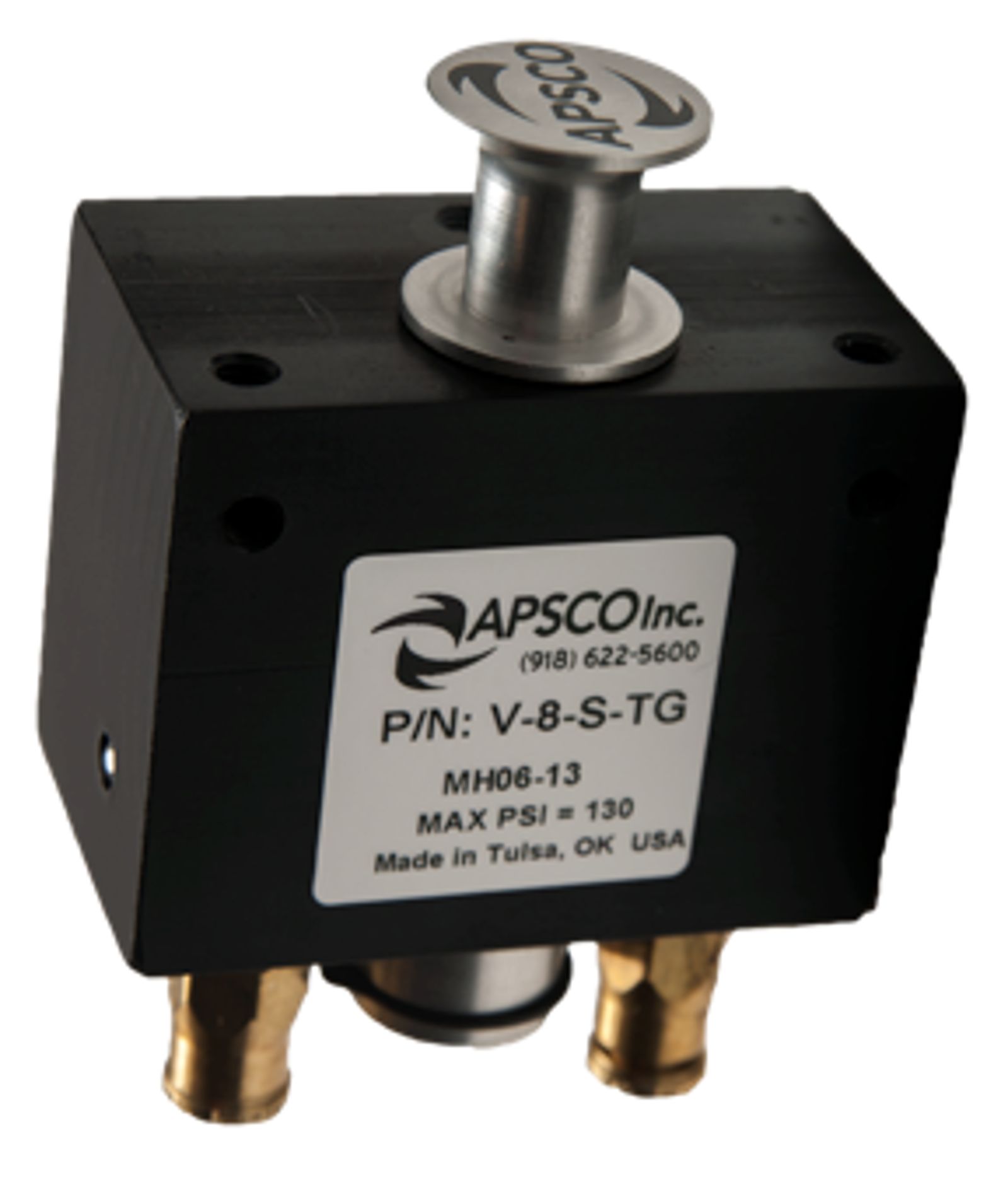

V-8-S-TG

2-position, 4-way, ports out bottom with fittings. Use in consoles with lid.

3 threaded 10-32 UNF vertical

Push/Pull

1/8"

2.50"

2.00"

1.50"

130

D.A.


V-8-S-TGL

2-position, 4-way, ports out bottom with fittings & locking button

3 threaded 10-32 UNF vertical

Push/Pull (with lock)

1/8"

2.50"

2.00"

1.50"

130

D.A.

V-8-S-LK

2-position, 4-way, ports out bottom with fittings, locking button & air-pilot kick-out

3 threaded 10-32 UNF vertical

Push/Pull (with lock)

1/8"

2.50"

3.25"

1.75"

130

D.A.

Drawing

V-8-TG

2-position, 4-way, cover plate, ports out bottom with fittings. Use in AVC-W consoles

3 threaded 10-32 UNF vertical

Push/Pull

1/8"

2.50"

2.00"

1.50"

130

D.A.

VL-5-ES

4-way. 2-pos, push/pull with electic kick-out

Bulkhead mount and horizontal mounting holes

Push/Pull 12Vdc kick-out

1/4"

1.50"

3.80"

1.90"

130

D.A.

Drawing

VX-4

2-position 4-way with 1/4" exhaust ports

Bulkhead mount and horizontal mounting holes

Push/Pull

1/4"

1.50"

3.80"

1.00"

130

D.A.

Drawing


VX-4-N

3-position with neutral center position, single spool 4-way 1/4" exhaust ports

Bulkhead mount and horizontal mounting holes

Push/Pull

1/4"

1.00"

4.58"

1.50"

150

D.A.

Drawing


VX-4-AP

4-way air pilot w/ spring return

Air Pilot

N/A

1/4" Working 1/8"pilot

1.50"

4.55"

1.00"

130

D.A.

Drawing
