We offer various design options including:
- Air pilot control
- Electric solenoid control
- Push-pull valve control
- Internal and external accessible pressure regulator/gauge
- Wiring and tubing harness options

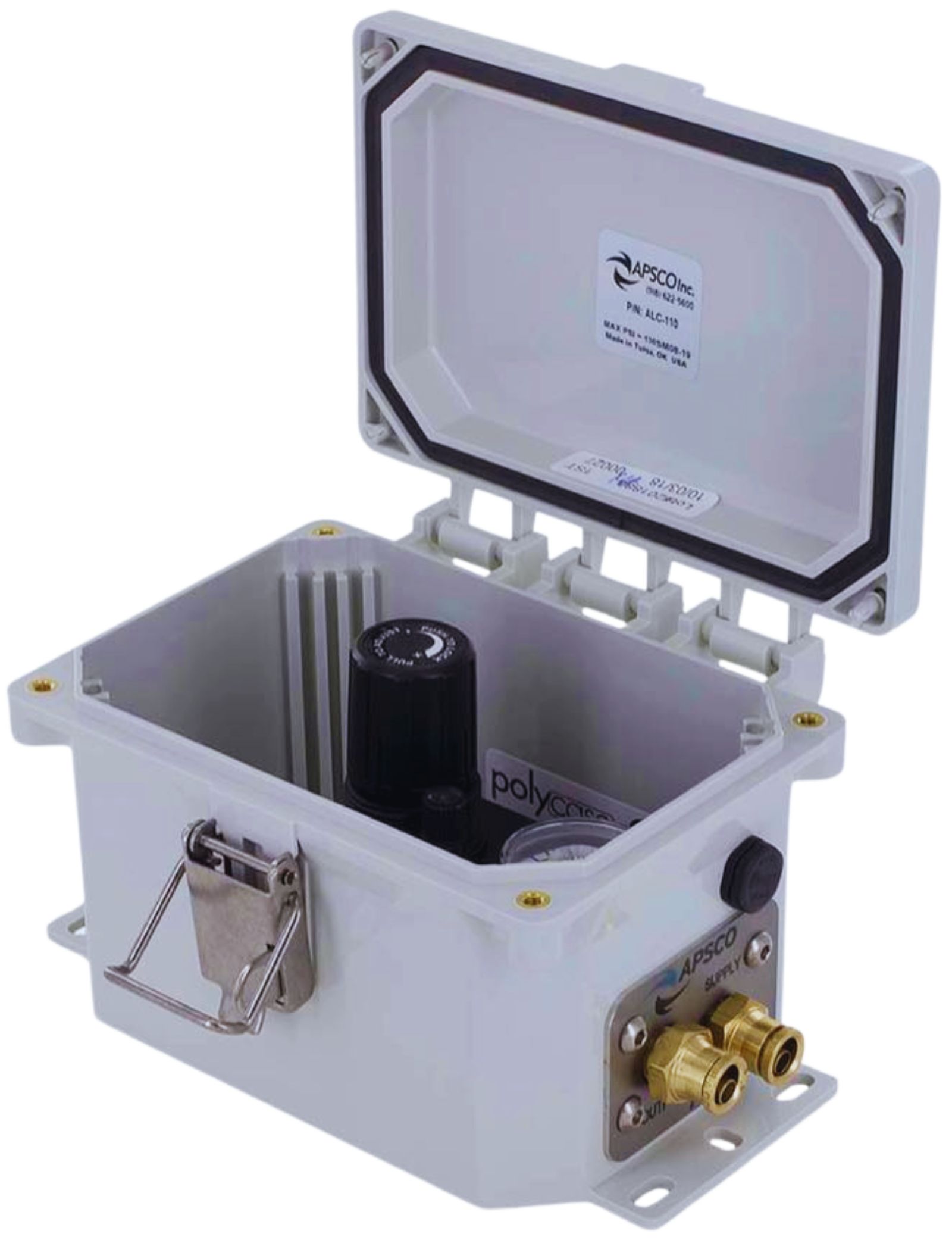

Control Enclosure Assembly
APSCO’s Lift Axle Control Enclosures are intended to be mounted outside of the cab for use in harsh outdoor environments. The control valves are mounted within a waterproof polycarbonate enclosure. Each valve body port is clearly labeled with easy access, external to the enclosure. APSCO lift axle controls are suitable for use with non-steerable or steerable axles (ability to automatically raise the lift axle when reverse gear is engaged).
- Durable impact-resistant polycarbonate enclosure
- Corrosion resistant design
- Weatherproof design ensures internal components are protected in any environment
Continuous silicone rubber gasket for watertight seal - NEMA & IP ratings for outdoor use
- Stainless steel hardware
PART # |
DESCRIPTION |
DRAWING |
SUPPORT |
|---|---|---|---|
ALC-100 |
Lift Axle Enclosure (waterproof),steerable & non-steerable applications. 12Vdc electric solenoid, 25-ft wire harness. Regulator, pressure gauge & 3/8" port fittings. | ||
ALC-110 |
Lift Axle Enclosure (waterproof),clear latching lid. Regulator, pressure gauge, psi inspection port & 3/8" port fittings. |
PART # | DESCRIPTION |
|---|---|
8010 | ALC-100/ALC-110 Pressure Gauge |
DX-2 | ALC-100 Exhaust Protectors |
WH-4 | ALC-100 Wiring Harness |
6002 | ALC-100 Electrical Relay |
PP-470 | Pressure Protection Valve |
AQX-03 | Quick Exhaust Valve |
8112 | Toggle Switch (water-proof) |
8073 | ALC-100/ALC-110 Breather Vent |
