APG 35 Series

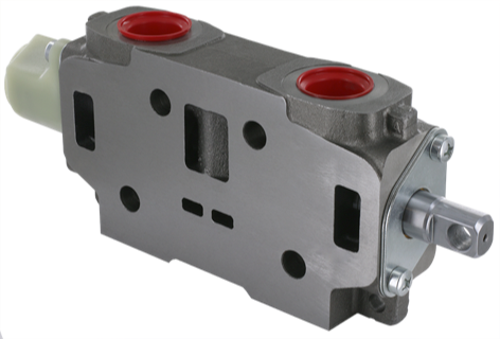

Directional Control Valve

APSCO’s APG directional control valves are sectional hydraulic valves that can be used in parallel/open center circuit applications with manual, hydraulic or pneumatic actuation.

  • Interchangeable with the very popular VA and VG series hydraulic valve
  • The APG 20 Series has a nominal capacity of 40gpm and a max operating pressure of 3500PSI.
  • The APG35 Series has a nominal capacity of 70gpm and a max operating pressure of 3500PSI
  • The compacted graphite cast iron construction allows for a max operating pressure of 3500PSI
  • Available in individual components or we can build you a custom engineered and tested valve assembly
  • 100% factory tested

Learn more
APG 20 Series
APV 20 Series
All Directional Control Valves Products
  • FEATURES
  • RESOURCES
  • Compacted graphite cast iron for shock load resistance and higher pressure needs
  • Full flow relief valves and low open center pressure drop
  • Parallel circuit design permits all spools to be operated independently or simultaneously with the lightest load receiving priority
  • Precision machined spools are hard chrome plated for maximum life and corrosion resistance
  • Stackable sectional design allows for customizing the assembly to your specific needs
  • Work sections are 100% pre-assembled and pre-tested before shipping
  • Large variety of spool types and backcap actions. Transition load checks are standard to prevent load shifts between spool positions
  • Wide range of work port options including port reliefs, anti-cavitation valves, port restrictors, and power beyond (or HPCO – High Pressure Carry Over) providing flexibility for all your design needs
    Technical data
  • Directly interchangeable with the popular VA35 and VG35 hydraulic valve product lines.
  • Available in individual components or we can build you a custom engineered and tested valve assembly



Design Type: Sectional

Circuit: Parallel/Open Center

Material: Compacted Graphite cast iron, a High Strength Iron Alloy

Capacity: 70 GPM – 226 LPM – Nominal

Max. System Pressure: 3500 psi – using SAE porting

Seal Type: Buna-N

Relief Valves

  • Inlet Main Relief Valve – Screw adjustable with pressure ranges settings from 500-3500 psi
  • Hi-Boy Work Section Port Relief Valves – available in adjustable or fixed configurations with pressure range settings from 800 – 3500 psi
Brochure Parts List

(Swipe left to see more of table)

APG 35 SERIES - INLET

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DVG SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-A440 DVA35-A440 DVG35-A440 Inlet with 1" NPT top & side ports (without relief)
APG35-A880 DVA35-A880 DVG35-A880 Inlet with SAE-16 top & side ports (without relief)
APG35-A980 DVA35-A980 DVG35-A980 Inlet with SAE-20 Side Port, SAE-16 Top Port (without relief)

APG 35 SERIES - MAIN RELIEF VALVES (USE WITH INLET)

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DVG SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-MRV-1 DVA35-MRV-1 DVG35-MRV-1 Inlet Relief 800-2000PSI Screw Adjustable , Set @ 2000 psi
APG35-MRV-2 DVA35-MRV-2 DVG35-MRV-2 Inlet relief 2000-2500PSI Screw Adjustable , Set @ 2500 psi
APG35-HMRV DVG35-HMRV Inlet relief 2800-3500PSI Screw Adjustable, Set @ 3000 psi
APG35-MRVP DVA35-MRVP DVG-MRVP Inlet relief plug

APG 35 Series - Outlet

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DVG SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-TR55 DVA35-TR55 DVG35-TR55 Outlet, 1 1/4" NPT ports top and side
APG35-TR99 DVA35-TR99 DVG35-TR99 Outlet, SAE-20 Ports top and side
APG35-PB55 DVA35-PB55 DVG35-PB55 Power Beyond Outlet 1 1/4" NPT ports
APG35-PB90 DVA35-PB90 DVG35-PB90 Power Beyond Outlet SAE 20 end ports
APG35-PB99 DVA35-PB99 DVG35-PB99 Power Beyond Outlet SAE 20 top and side ports

APG 35 Series - Work Section (Low-Boy)

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DVG SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-SA4 DVA35-SA4 DVG35-SA4 Single acting, cylinder spool, spring return, 1" NPT port, B port only
APG35-SA8 DVA35-SA8 DVG35-SA8 Single acting, cylinder spool, spring return, SAE-16 port, B port only
APG35-SV4M DVA35-SV4 DVG35-SV4 Single acting, cylinder spool, metering airshift, spring return, 1" NPT port, B port only
APG35-SV4NM Single acting, cylinder spool, non-metering airshift, spring return, 1" NPT port, B port only
APG35-SV8M DVA35-SV8 DVG35-SV8 Single acting, cylinder spool, metering airshift,spring return, SAE-16 port, B port only
APG35-SV8NM Single acting, cylinder spool, non-metering airshift, spring return, SAE-16 port, B port only
APG35-DA4 DVA35-DA4 DVG35-DA4 Double acting, cylinder spool, spring return, 1" NPT ports
APG35-DA8 DVA35-DA8 DVG35-DA8 Double acting , cylinder spool, spring return, SAE-16 ports
APG35-DB4 DVA35-DB4 DVG35-DB4 Double acting, cylinder spool, 3 pos detent, 1" NPT ports
APG35-DB8 DVA35-DB8 DVG35-DB8 Double acting, cylinder spool, 3 pos detent, SAE-16 ports
APG35-DX4 DVA35-DX4 DVG35-DX4 Double acting, cylinder spool, hydraulic pilot control, spring return, 1" NPT ports
APG35-DX8 DVA35-DX8 DVG35-DX8 Double acting, cylidner spool, hydraulic pilot control, spring return, SAE-16 ports
APG35-DV4M DVA35-DV4 DVG35-DV4 Double action, cylinder spool, metering airshift, spring return, 1" NPT ports
APG35-DV4NM Double action, cylinder spool, non-metering airshift, spring return, 1" NPT ports
APG35-DV8M DVA35-DV8 DVA35-DV8 Double action, cylinder spool, metering airshift, spring return, SAE-16 ports
APG35-DV8NM Double action, cylinder spool, non-metering airshift, spring return, SAE-16 ports
APG35-MA4 DVA35-MA4 DVG35-MA4 Double acting, motor spool, spring return, 1"NPT ports
APG35-MA8 DVA35-MA8 DVG35-MA8 Double acting, motor spool, spring return, SAE-16 ports
APG35-MB4 DVA35-MB4 DVG35-MB4 Double acting, motor spool, 3 pos detent, 1" NPT ports
APG35-MB8 DVA35-MB8 DVG35-MB8 Double acting, motor spool, 3 pos detent, SAE-16 ports
APG35-MX4 DVA35-MX4 DVG35-MX4 Double acting, motor spool, hydraulic pilot control, spring return, 1" NPT ports
APG35-MX8 DVA35-MX8 DVG35-MX8 Double acting, motor spool, hydraulic pilot control, spring return, SAE-16 ports
APG35-MV4M DVA35-MV4 DVG35-MV4 Double action, motor spool, metering airshift, spring return, 1" NPT ports
APG35-MV4NM Double action, motor spool, non-metering airshift, spring return, 1" NPT ports
APG35-MV8M DVA35-MV8 DVG35-MV8 Double action, motor spool, metering airshift, spring return, SAE-16 ports
APG35-MV8NM Double action, motor spool, non-metering airshift, spring return, SAE-16 ports

APG 35Series - Work Section (Hi-Boy)

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DVG SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-JA405 DVA35-JA405 DVG35-JA405 Hi-BOY, Single acting, cylinder spool, spring return, 1" NPT, B port only, Plastic Plugged
APG35-JA805 DVA35-JA805 DVG35-JA805 Hi-BOY, Single acting, cylinder spool, spring return, SAE-16, B port only, Plastic Plugged
APG35-JV405M DVA35-JV405 DVG35-JV405 Hi-BOY, Single acting, cylinder spool, metering actuator, spring return, 1" NPT, B port only, Plastic Plugged
APG35-JV405NM Hi-BOY, Single acting, cylinder spool, non-metering actuator, spring return, 1" NPT, B port only, Plastic Plugged
APG35-JV805M DVA35-JV805 DVG35-JV805 Hi-BOY, Single acting, cylinder spool, metering air shift, SAE-16, B port only, Plastic Plugged
APG35-JV805NM Hi-BOY, Single acting, cylinder spool, non-metering air shift, SAE-16, B port only, Plastic Plugged
APG35-HA455 DVA35-HA455 DVG35-HA455 Hi-BOY, Double acting, cylinder spool, spring return, 1" NPT ports, Plastic Plugged
APG35-HA855 DVA35-HA855 DVG35-HA855 Hi-BOY, Double acting, cylinder spool, spring return, SAE-16 ports, Plastic Plugged
APG35-HB455 DVA35-HB455 DVG35-HB455 Hi-BOY, Double acting, cylinder spool, 3 pos detent, 1" NPT ports, Plastic Plugged
APG35-HB855 DVA35-HB855 DVG35-HB855 Hi-BOY, Double acting, cylinder spool, 3 pos detent, SAE-16 ports, Plastic Plugged
APG35-HX455 DVA35-HX455 DVG35-HX455 Hi-BOY, Double acting, cylinder spool, hydraulic pilot control, spring return, 1" NPT ports, Plastic Plugged
APG35-HX855 DVA35-HX855 DVG35-HX855 Hi-BOY, Double actiing, cylinder spool, hydraulic pilot control, spring return, SAE-16 ports, Plastic Plugged
APG35-HV455M DVA35-HV455 DVG35-HV455 Hi-BOY, Double acting, cylinder spool, metering airshift, spring return, 1" NPT ports, Plastic Plugged
APG35-HV455NM Hi-BOY, Double acting, cylinder spool, non-metering airshift, spring return, 1" NPT ports, Plastic Plugged
APG35-HV855M DVA35-HV855 DVG35-HV855 Hi-BOY, Double acting, cylinder spool, metering airshift, spring return, SAE-16 ports, Plastic Plugged
APG35-HV855NM Hi-BOY, Double acting, cylinder spool, non-metering airshift, spring return, SAE-16 ports, Plastic Plugged
APG35-LA455 DVA35-LA455 DVG35-LA455 Hi-Boy, Double acting, motor spool, spring return, 1"NPT ports, Plastic Plugged
APG35-LA855 DVA35-LA855 DVG35-LA855 Hi-BOY, Double acting, motor spool, spring return, SAE-16 ports, Plastic Plugged
APG35-LB455 DVA35-LB455 DVG35-LB455 Hi-BOY, Double acting, motor spool, 3 pos detent, 1" NPT ports, Plastic Plugged
APG35-LB855 DVA35-LB855 DVG35-LB855 Hi-BOY, Double acting, motor spool, 3 pos detent, SAE-16 ports, Plastic Plugged
APG35-LX455 DVA35-LX455 DVG35-LX455 Hi-BOY, Double acting, motor spool, hydraulic pilot control, spring return, 1" NPT ports, Plastic Plugged
APG35-LX855 DVG35-LX855 DVG35-LX855 Hi-BOY, Double acting, motor spool, hydraulic pilot control, spring return, SAE-16 ports, Plastic Plugged
APG35-LV455M DVA35-LV455 DVG35-LV455 Hi-BOY, Double acting, motor spool, metering airshift, spring return, 1" NPT ports, Plastic Plugged
APG35-LV455NM Hi-BOY, Double acting, motor spool, non-metering airshift, spring return, 1" NPT ports, Plastic Plugged
APG35-LV855M DVA35-LV855 DVG35-LV855 Hi-BOY, Double acting, motor spool, metering airshift, spring return, SAE-16 ports, Plastic Plugged
APG35-LV855NM Hi-BOY, Double acting, motor spool, non-metering airshift, spring return, SAE-16 ports, Plastic Plugged

APG 35 Series - Port Relief Valve (for use with Hi-Boy Work Section)

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG-PRVAC DV-PRVAC Port Relief Valve with AC, screw adjustable 500-5000PSI (factory set 2500PSI@10GPM)
APG-PRVS-1 DV-PRVS-1 Port Relief, Screw Adjustable 500- 1000 psi (set @ 750 psi)
APG-PRVS-2 DV-PRVS-2 Port Relief Valve, Screw Adjustable 1000-2500 psi (set @ 1250 psi)
APG-PRVS-3 DV-PRVS-3 Port Relief, Screw Adjustable 2500- 3500 psi (set @ 2000 psi)
APG-PRVP DV-PRVP Work Port Relief Valve plug
APG-PRV-1 DV-PRV-1 Port Relief, Shim Adjustable 500- 1000 psi Set @ 1000 psi
APG-PRV-2 DV-PRV-2 Port Relief Valve, Shim Adjustable 1000-2500 psi Set @ 2000 psi
APG-PRV-3 DV-PRV-3 Work Port Relief, Shim Adjustable, 2500-3500 psi Set @ 2500 psi
APG-PRV-SK DV-PRV-SK Port Relief Valve Shim Kit

APG 35 Series - Mid Inlet

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DVG SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-CFA-80 DVA35-CFA80 DVG35-CFA80 Mid Inlet Combined Flow SAE-16 top port (without relief)
APG35-CFA-40 DVA35-CFA40 DVG35-CFA40 Mid Inlet Combined Flow 1" NPT top port (without relief)

APG 35 Series - Stud Kits

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-SK-1 DVA35-SK-1 Blind Hole Stud Kits, 1 work section
APG35-SK-2 DVA35-SK-2 Blind Hole Stud Kits, 2 work section
APG35-SK-3 DVA35-SK-3 Blind Hole Stud Kits, 3 work section
APG35-SK-4 DVA35-SK-4 Blind Hole Stud Kits, 4 work section
APG35-SK-5 DVA35-SK-5 Blind Hole Stud Kits, 5 work section
APG35-SK-6 DVA35-SK-6 Blind Hole Stud Kits, 6 work section
APG35-SK-7 DVA35-SK-7 Blind Hole Stud Kits, 7 work section
APG35-SK-8 DVA35-SK-8 Blind Hole Stud Kits, 8 work section

APG 35 Series - Handles

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-H-4 DV35-H-4 8" standard Handle
APG35-H-8 DV35-H-8 8" H style Handle For High Boy
APG35-H-10 DV35-H-10 10" H style Handle For High Boy

APG 35 Series - Accessories

PART #
▲ ▼
DVA SERIES PRODUCT CODE
▲ ▼
DESCRIPTION
▲ ▼
APG35-K-11 DV35-K11 Assembly Kit = For seals between sections only
APG35-K-12 DV35-K-12 Repair Kit = For section seals, spool seals and back up rings, load check seal
APG35-K-200 DV35-K-200 Spring Center Kit
APG35-K-201 DV35-K-201 Detent Kit
APG35-K-209 DV35-K-209 Hydraulic Pilot kit
C-3835-DM DV35-K-213 Metering Air Shift Kit
C-3535-DM Non Metering Air Shift Kit
